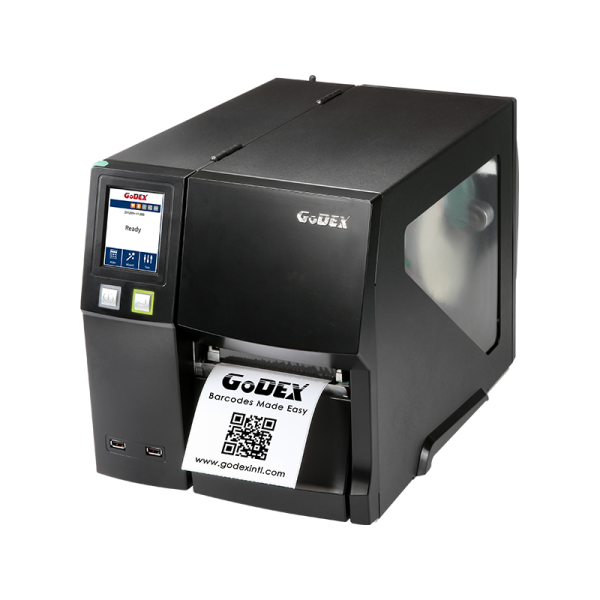

ZX1600i+

The Rise of Automation, ZX1000i+ is the Selection.

The ZX1000i+ series is equipped with an effective and robust print mechanism, designed and built for high-volume industrial printing jobs, and suitable for any segment in the production chain.

All-Metal Frame Structure
User-Friendly Interface
Multiple Interfaces for Maximum Connectivity
Various Output Options
Supports High-volume Printing Jobs
Easy Maintenance
Full Range Adjustable Media Sensors

To purchase GoDEX printers, Call us direct on 01903 896897

£1,376.79 ex VAT

Buy Now!

ZX1600i+ Spare Parts & Accessories

For pricing and more information on spare parts and accessories for the ZX1600i+ please call us on 01903 896897

Part Number	Description	Price (ex VAT)
021-Z2X001-000	Godex - 203DPI Printhead ZX1x00Xi(+)/GX4x00i(PRO)	£248.16
021-Z3X001-000	Godex - 300DPI Printhead ZX1x00Xi(+)/GX4x00i(PRO)	£365.56
021-Z6I002-000	Godex - 600DPI Printhead ZX1600i(+)(PRO)/GX4x00i(PRO)	£604.64
GP-219-114240-062	Godex - 203DPI Printhead - ZX1x00i(+)(PRO)	£165.51
GP-219-124240-062	Godex - 300DPI Printhead - ZX1x00i(+)(PRO)	£243.64
GP-021-Z2I004-000	Godex - Platen Roller ZX1x00(X)i(+)(PRO)/ZX4x0(i)(+)(PRO)/GX4x00i(PRO)	£27.81
031-W04001-000	Godex - WiFi/BT Module DT2x0(i)+/RT7x0i+/RT8x3i+/GE3x0/ G5x0+/RT200(i)/ZX1x00(X)i+/GX4x00i	£110.47
031-Z2I006-000	Godex - Rotary Cutter Module ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£471.06
031-Z2I008-000	Godex - 15-Pin GPIO Applicator Interface ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£95.96
031-Z2I012-000	Godex - Perforation Cutter ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£1,100.16
031-Z2I014-000	Godex - Guillotine Cutter (thick paper) ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£515.50
031-Z2I016-000	Godex - High Speed Cutter ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£1,022.00
031-Z2I018-000	Godex - Stripper/Liner Take-Up ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£310.90
GP-031-70I001-000	Godex - Bluetooth Module 2.1 RT7XOi/RT860i/ZX	£103.77
GP-031-Z2I001-000	Godex - Guillotine Cutter Module ZX1x00(X)i(+)(PRO)/GX4x00i(PRO)	£264.00
GP-031-Z2I002-000	Godex - Parallel Port Module ZX1x00(X)i(+)/GX4x00i	£45.20
GP-031-Z2I004-000	Godex - WiFi Module ZX1x00i	£162.41
GP-T10	Godex - GP-T10 External Label Rewinder - 4" Wide	£229.54
KEYBOARD-NUMERIC	USB keyboard – Numeric keypad	£30.50
KEYBOARD-QWERTY	USB keyboard – Full compact qwerty	£24.61
ZX1-GX4-USONIC-01	Godex - Ultrasonic Label Gap Sensor for ZX/GX Series	£437.93
GW1Y-NC-IN-Z1	Godex - Onsite NonComp Industrial Warranty Upgrade 1Y; Printhead/Platen Excl	£224.29
GW2Y-NC-IN-Z1	Godex - Onsite NonComp Industrial Warranty Upgrade 2Y; Printhead/Platen Excl	£421.43
GW3Y-NC-IN-Z1	Godex - Onsite NonComp Industrial Warranty Upgrade 3Y; Printhead/Platen Excl	£810.00
GW5Y-NC-IN-Z1	Godex - Onsite NonComp Industrial Warranty Upgrade 5Y; Printhead/Platen Excl	£1,438.57

ZX1600i+ Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm) / 300 dpi (12 dots/mm) / 600 dpi (24 dots/mm)
Print Speed	Up to 10 IPS (254 mm/s) / Up to 7 IPS (178 mm/s) / Up to 4 IPS (102 mm/s)
Print Width	4.09” (104 mm, up to 108mm) / 4.09” (104 mm, up to 105.7mm) / 4.09” (104 mm, up to 105.6mm)
Print Length	Min. 0.12” (3 mm); Max. 279.53” (7100 mm) / Min. 0.12” (3 mm); Max. 125.98” (3200 mm) / Min. 0.12” (3 mm)**; Max. 31.5” (800 mm)
Processor	32 bit RISC CPU
Memory	• Flash 256 MB • SDRAM 256 MB

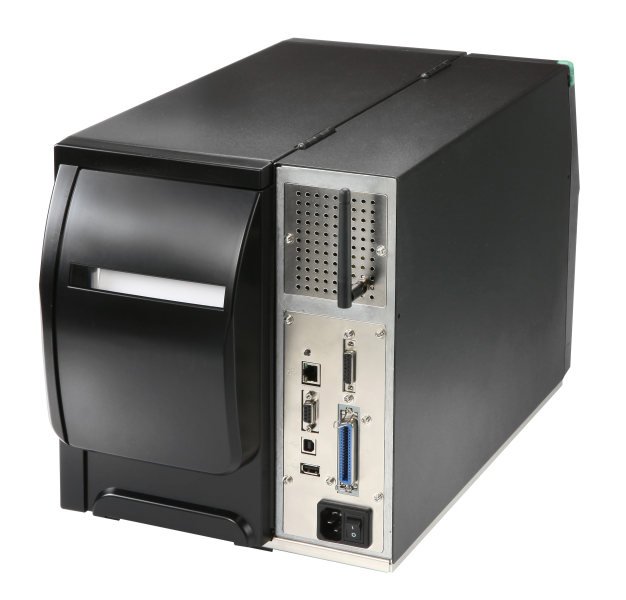

Interfaces	• USB 2.0 (Type B) • Serial Port (RS232) • Ethernet 10/100 Mbps • USB Host *3(Type A). 2 ports at the front panel, 1 port at the rear panel
Ribbon	• Length Max. 1476’ (450 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 3” (76.2 mm) • Core diameter 1” (25.4 mm)
Control Panel	• Backlight 3.2” touch screen LCD • 1 Power on/off button with green colour LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) • 1 Calibration button at rear panel
