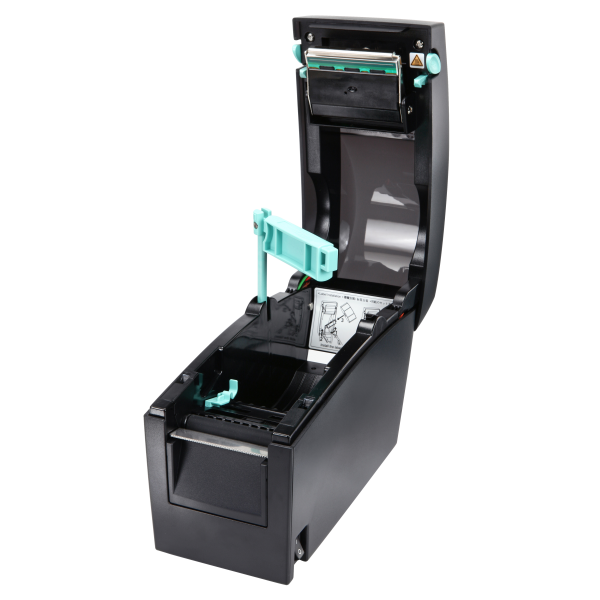

The GoDEX DT2x and DT4x are both ultra-light, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags.
To purchase GoDEX printers, Call us direct on 01903 896897
£205.11 ex VAT
Buy Now!
For pricing and more information on spare parts and accessories for the GoDEX DT2x please call us on 01903 896897
| GP-031-DT2001-000 | 2" Stripper Module |
| GP-031-DT2002-000 | 2" Guillotine Cutter Module |
| GP-219-112240-002 | 2" 203 dpi Print Head |
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 7 IPS (177 mm/s)** |
| Print Width | 2.12” (54 mm) |
| Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | Flash: 4 MB Flash (2 MB for user storage) SDRAM: 16MB |
| Sensor Type | Fixed transmissive sensor and reflective sensor, central aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm) Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm) Label Roll Diameter: Max. 5” (127 mm) Core Diameter: 1” (25.4 mm), 1.5” (38.1mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label Design Software: GoLabel (for EZPL only) Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 |
| Resident Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts: 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts: 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code. |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB 2.0 Serial port: RS-232 (DB-9) IEEE 802.3 10/100Base-Tx Ethemet port (RJ-45) |
| Control Panel | One Tri-color LED : Power (Green, Orange and Red) Function Key : FEED |
| Real Time Clock | Standard |
| Power | Auto Switching 100-240VAC, 50-60Hz. |
| Environment | Operation Temperature: 41°F to 104°F (5°C to 40°C) Storage Temperature : -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE (EMC), FCC Class A, CB, CCC, cUL |
| Dimension | Length: 8.58” (218 mm) Height: 6.77” (172 mm) Width: 3.94” (100 mm) |
| Weight | 2.65 lbs (1.2 Kg) ,excluding consumables |
| Options | Cutter module Label Dispenser External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| Note | **Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type,thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability. |
| DT2x series Quick Guide |
|
|
| DT2x series Brochure_English |
|
|
| DT2x series User Manual_English |
|
|
| DT2x Calibration (VIDEO) |
|
|
| DT2x Media Loading (VIDEO) |
|
|
| EZPL Programming Manual_English |
|
|
| Driver - Godex_2017.1_M-0 |
|
For All Downloads Click Here
