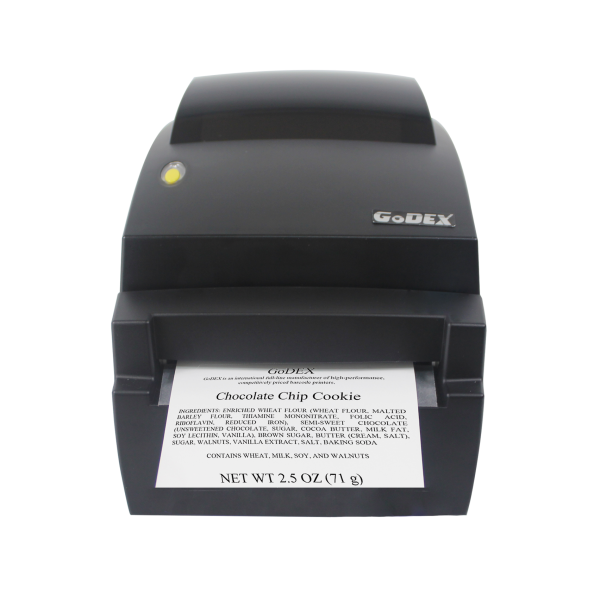

DT4L

Linerless label printer for productivity and Eco-friendliness

A linerless label is a label without a backing sheet or liner paper. Based on this
technology, GoDEX comes out with a new barcode printer DT4L. The linerless label
cutter is standard on this model, which brings a “Print – Cut – Paste” serial integration
to the operations process. Reduce the wasteful liner paper from your processes and
contribute more to our environment.

203 dpi (8 dots/mm) direct thermal print head, printing speed up to 6 ips (152 mm/s)
Maximum printing width: 108 mm

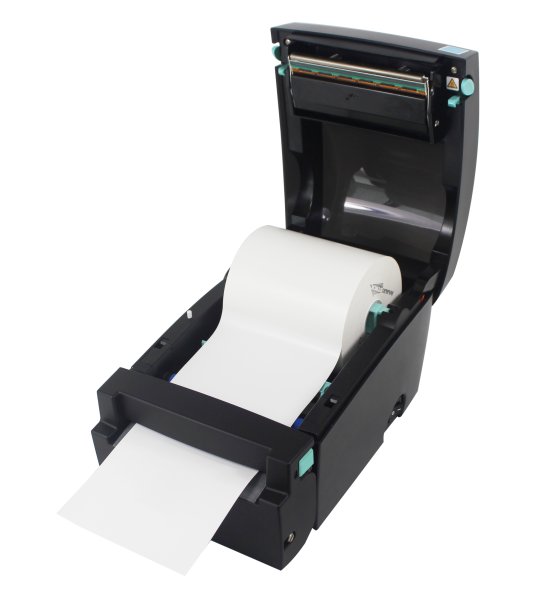

Special linerless label cutter as standard configuration.
Cutter cover is designed can be open and close, easy for cleaning when necessary.
The mechanism and platen are manufactured with anti-stick design, helping to
stabilize label output.
Variety of transmission interface with high adaptability.

To purchase GoDEX printers, Call us direct on 01903 896897

£439.39 ex VAT

Buy Now!

DT4L Spare Parts & Accessories

For pricing and more information on spare parts and accessories for the DT4L please call us on 01903 896897

Part Number	Description	Price (ex VAT)
021-105013-000	Godex - DT41 Printhead	£91.27
021-D20003-000	Godex - DT200(i)(L) Printhead - 200DPI	£75.13
GP-021-R23001-000	Godex - DT230/RT230(i)(L)(L+) Printhead - 300DPI	£100.76
GP-219-112240-002	Godex - DT2x Printhead - 203DPI	£75.13
GP-219-114240-002	Godex - 203DPI Printhead - RT7x0i(+)(PRO)/DT4x(PRO)/DT4L	£102.21
021-D20010-000	Godex - DT2x0(i) Platen Roller	£29.71
021-D20L01-000	Godex - DT2X0(i)L Linerless Platen Roller	£62.06
021-DT2010-000	Godex - DT2x Platen Roller	£25.26
021-DT4010-00A	Godex - DT4x Platen Roller	£27.09
021-DT4014-000	Godex - DT4L Platen Roller	£64.70
031-D20001-000	Godex - Guillotine Cutter Module DT2X0(i)	£118.66
031-D20002-000	Godex - Real Time Clock DT2X0(i)(L)	£24.66
031-D20003-000	Godex - Wifi Module DT2X0(i)(L)	£162.41
031-D20004-000	Godex - Bluetooth Module 2.1 DT2x0(i)(L); Win/Android	£103.77
031-D20005-000	Godex - Bluetooth Module 4.0 DT2x0(i)(L); Win/Android/iOS	£138.99
031-D20L01-000	Godex - DT2x0(i)L Linerless Cutter Module	£210.87
031-G50003-000	Godex - External Label Unwind Stand 2"-4" - GODEX BRANDED	£33.44
031-W04001-000	Godex - WiFi/BT Module DT2x0(i)+/RT7x0i+/RT8x3i+/GE3x0/ G5x0+/RT200(i)/ZX1x00(X)i+/GX4x00i	£110.47
GP-031-DT2251-001	Godex - 2" Stripper Module Black (DTxX)	£27.94
GP-031-DT4251-001	Godex - 4" Stripper Module (PRO/DT41/DT4C)	£31.51
GP-031-DT4255-001	Godex - 4" Guillotine Cutter Module (PRO)	£162.41
GP-T10	Godex - GP-T10 External Label Rewinder - 4" Wide	£229.54
GW1Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 1Y; Printhead/Platen Excl	£181.43
GW2Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 2Y; Printhead/Platen Excl	£335.71
GW3Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 3Y; Printhead/Platen Excl	£652.86

DT4L Specifications

Print Method	Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	5 IPS (127 mm/s)
Print Width	4.25” (108 mm)
Print Length	Min. 0.16” (4 mm); Max. 68” (1727 mm)
Processor	32 Bit RISC CPU
Memory	8 MB Flash (4MB for user storage) SDRAM : 16 MB
Interfaces	USB Device (B-Type) Serial port: RS-232 (DB-9) IEEE 802.3 10/100Base-Tx Ethernet port (RJ-45)
Ribbon	N/A
Control Panel	One Tri-color LED : Power (Green, Orange and Red) Function Key : FEED

Application
